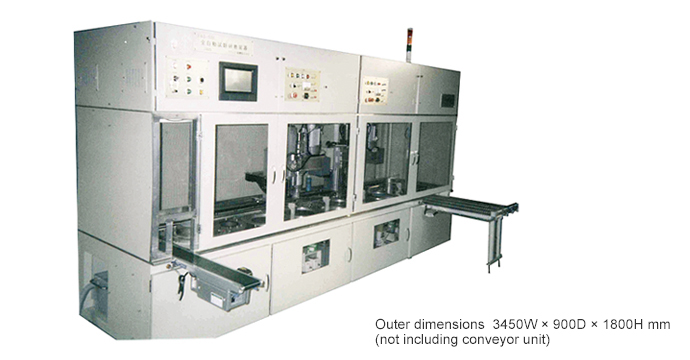

Automatic polisher with 5-plex Surface Shaper Model FAS-55L
Our most innovative specimen preparation system. Capable of unmanned overnight operation.
A combination system that can prepare any number of specimens completely automatically.

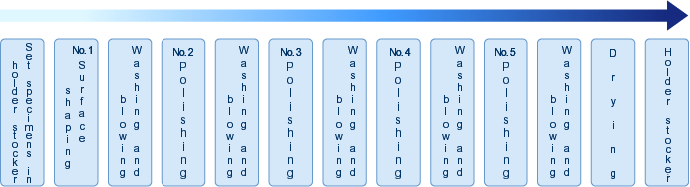

With this system, the number of grinding/polishing processes from surface shaping grinding to final washing/drying can also be changed.
■Specifications
| Power supply |
3-phase 200/220V 50/60Hz |
| Air |
0.5 to 0.6MPa |
| Water |
20N |
| Surface shaping grinding unit |
| Motor |
3.7kW |
| Rotation speed |
850min-1 |
| Grinding whetstone |
Φ200×t40 |
| Grinding time |
0 to 999S |
| |
with automatic dressing |
| Pressurizing head unit |
| Conveyor |
Motor-driven rack-and-pinion type |
| Holder drive |
0.4kW |
| Rotation speed |
0 to 150min-1 |
| Pressing force |
5 to 50kg |
| Conveyor motor |
40W |
| No. 2 to No. 3 polishing |
| Motor |
0.75kW |
| Stepless speed variation |
Inverter control |
| Rotation speed |
0 to 600min-1 |
| polishing disk |
Φ200 |
| polishing time |
0 to 999S |
| No. 4 to No. 5 polishing |
| Motor |
0.75kW |
| Stepless speed variation |
Inverter control |
| Rotation speed |
0 to 600min-1 |
| polishing disk |
Φ200 |
| Grinding time |
0 to 999S |
| No. 1 to No. 3 Washing |
Washing water |
| Drying |
Blower type |
| Loading and unloading |
Conveyor |
