Automatic polisher

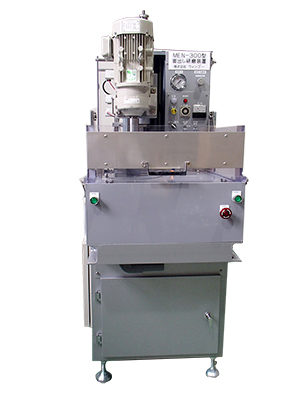

Automatic Surface Shaper Model MEN-300
An efficient automatic surface shaper of high reproducibility. A specimen set on a holder is ground by a high-speed grinding whetstone.
■Specifications
| Power supply | 3-phase 200V 50/60Hz |
|---|---|
| Air | 0.5MPa or more |
| Water | 20N |
| Whetstone driving motor | 3-phase 3.7kW 4P |
|---|---|
| Whetstone rotation speed | 1450min-1 |
| Specimen plate rotating motor | 0.75kW 4P |
| Specimen plate rotation speed | 160min-1 |
| Diamond dresser |
Manual |
| Grinding whetstone | Φ355×t45 |
| Outer dimensions(mm) | W600×D1000×H1680 |
| Cutting water | Circulation method or supply/drain method |
| Grinding pressure setting | 0 ~ 800N Adjusted by a precision regulator. |
| Grinding time setting | 3min / 12min Other range switchable. |
