Specimen Cutters
Medium Cutters Models L-6000A/6100A, L-7000A/7100A, L-8000A/8100A, and L-9000A/9100A
Auto Front/Back-slide Cutting Type
■Features
 |
Automatic cutting is performed by one-touch operation. The cutter automatically returns to the original state after the end of cutting. |
|---|---|
|
A changeover switch enables easy switching between automatic cutting and manual cutting. |
|
Motorized cutting feeding enables smooth cutting without variations. |
|
A dial enables free, stepless adjustment of the cutting feeding speed. |
|
External coolant tank provided with wheels to enable easy exchange of cutting fluid. |
|
The upper safety cover opens to the front to facilitate work. |
|
UD models (in which the whetstone shaft moves vertically) are also available. |

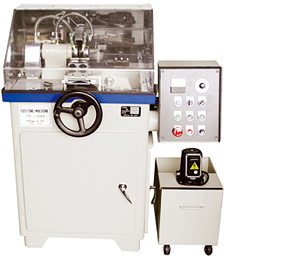

L-6000A
※The safety cover is transparent.

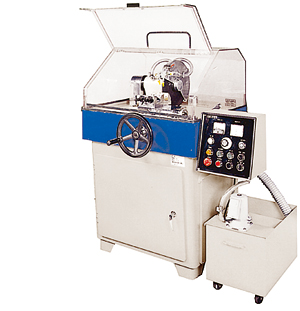

L-8100A
※The safety cover is transparent.
■Product Specifications
| Model | L-6000A/6100A | L-7000A/7100A | L-8000A/8100A | L-9000A/9100A |
|---|---|---|---|---|
| Max. Cutting Ability | 55mmΦ | 60mmΦ | 70mmΦ | 80mmΦ |
| Power Supply | 3-phase 200/220V 50/60Hz |
3-phase 200/220V 50/60Hz |
3-phase 200/220V 50/60Hz |
3-phase 200/220V 50/60Hz |
| Machine Dimensions(mm) | 980W×750D×1150H | 1130W×820D×1200H | 1150W×980D×1350H | 1200W×1100D×1360H |
| Spindle Motor | 3-phase 1.5kw | 3-phase 2.2kw | 3-phase 3.7kw | 3-phase 3.7kw |
| Spindle Speed | 3,000min-1 | 2,800min-1 | 2,500min-1 | 2,300min-1 |
| Whetstone Outer diameter×Thickness×Hole diameter(mm) |
230Φ×1.2×31.75Φ | 255Φ×1.2×31.75Φ | 305Φ×1.5×31.75Φ | 355Φ×1.5×31.75Φ |
| Cooling Device | 40W coolant pump, 25-liter tank | 60W coolant pump, 30-liter tank | 100W coolant pump, 60-liter tank | 100W coolant pump, 80-liter tank |
| Vice Opening Width | Double-column clamping 55mm | Double-column clamping 65mm | Double-column clamping 80mm | Double-column clamping 100mm |
| Horizontal Vice Movement | Fixed/50mm | Fixed/70mm | Fixed/70mm | Fixed/80mm |
| Angular Cutting | Fixed/25° | Fixed/25° | Fixed/25° | Fixed/25° |
| Front/Back Cutting Speed | 0 to 100mm／min | 0 to 100mm／min | 0 to 100mm／min | 0 to 100mm／min |
| Machine Weight | Approx. 220kg | Approx. 270kg | Approx. 310kg | Approx. 350kg |
| ※ | The vice is fixed in models L-6000A, L-7000A, L-8000A, and L-9000A. |
|---|---|
| ※ | The vice is horizontally movable in models L-6100A, L-7100A, L-8100A, and L-9100A. |
