Specimen polishers

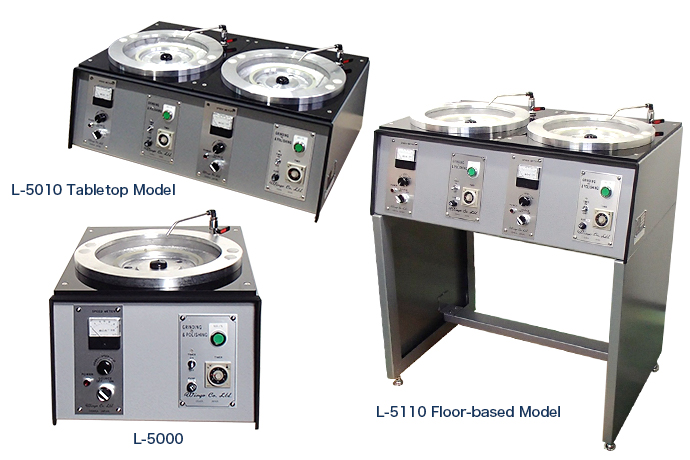

Variable Speed System polishers L-5000 Series
Variable speed polishers. Attachments can be mounted.
■L-5000 Series polisher Specifications
| Model | Product | Rotation speed | Motor output | Outer dimensions(mm) | Weight |
|---|---|---|---|---|---|
| L-5000 | 8” single-axis tabletop model | 0 to 300min-1 | 400W Inverter control (per axis) |
390W×540D×405H | Approx. 30kg |
| L-5010 | 8” two-axis tabletop model | 770W×540D×405H | Approx. 60kg | ||
| L-5020 | 8” three-axis tabletop model | 1150W×540D×405H | Approx. 90kg | ||
| L-5030 | 8” four-axis tabletop model | 1530W×540D×405H | Approx. 120kg | ||
| L-5100 | 8” single-axis floor-based model | 390W×540D×960H | Approx. 45kg | ||
| L-5110 | 8” two-axis floor-based model | 770W×540D×960H | Approx. 75kg | ||
| L-5120 | 8” three-axis floor-based model | 1150W×540D×960H | Approx. 105kg | ||
| L-5130 | 8” four-axis floor-based model | 1530W×540D×960H | Approx. 135kg |
| ※ | Power supply: 1-phase 100/110V 50/60Hz (standard), 1-phase·3-phase 200/220V, Also compatible with 50/60Hz. Water supply 1/2” Water drain 1” |
|---|---|
| ※ | Besides the 8” (205φ) models, 9” (225φ) models are also available. |
■Standard Accessories
| ・8” (205φ) aluminum disk with hole/with fluororesin(PTFE) coating (per axis) | 1 pc. |
|---|---|
| ・Water supply hose (12mmφ × 3m) with joint | 1 set |
| ・Water drain hose (32mmφ × 1m) with joint | 1 set |
■Optional Items
| ・8” (205φ) and 9” (225φ) aluminum disks without hole | |
|---|---|
| ・8” and 9” paper holder rings (for adhesive-free applications) | |
| ・8” and 9” buff fastening bands (for adhesive-free applications) | |
| ・8” and 9” splash-proof covers | |
| ・8” and 9” dust-proof covers |
