Specimen polishers

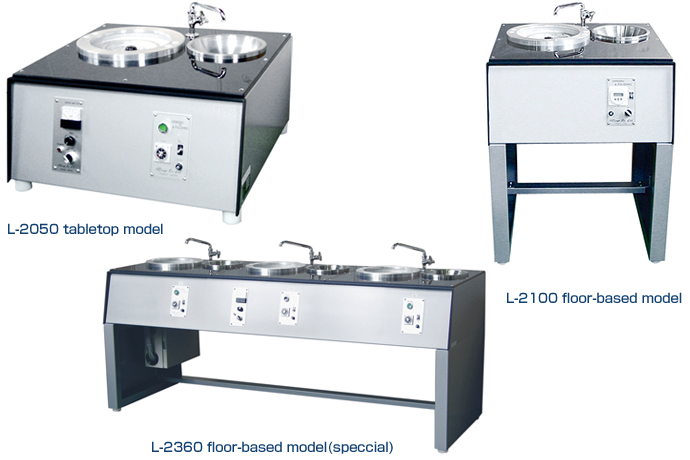

System polishers L-2000 Series (with washing bowl)
The wide table with its built-in large washing bowl makes washing easy and provides a wide workspace.
The 8” (205φ) disk diameter is standard for the L-2000 Series, and the 12” (300φ) disk diameter is standard for the L-3000 Series.
In regard to rotation speed, a selection can be made from among single fixed speed (R), two fixed speed (K), variable speed pole change (P), and variable speed (V) models.
Attachments (in common to the L-2000 and L-3000 Series) can be mounted.
| ※ | Although the standard power supply for the variable speed models is 1-phase/100V, adaptation to 1-phase/200V or 3-phase/200V is also possible. |
|---|---|
| ※ | 0 to 300min-1 or 0 to 600min-1 can be selected as the rotation speed range of variable speed models. However, although attachments can be used with the 0 to 300min-1 specification, the 0 to 600min-1 specification is for manual grinding/polishing only. |
■L-2000 Series polisher Specifications (with washing bowl)
| Model | Product | Rotation speed(at 60Hz) | Motor output | Outer dimensions(mm) | Weight |
|---|---|---|---|---|---|
| L-2000 | 8” single-axis tabletop model | 100/120R | 1-phase 100V·200W | 700W×730D×490H | Approx. 45kg |
| L-2010 | 200/240R | ||||
| L-2050 | ※V (0 to 300min-1 or 0 to 600min-1) | 400W Inverter control | |||
| L-2100 | 8” single-axis floor-based model | 100/120R | 1-phase 100V·200W | 700W×730D×970H | Approx. 60kg |
| L-2110 | 200/240R | ||||
| L-2150 | ※V(0～300min-1 or 0～600min-1) | 400W Inverter control | |||
| L-2200 | 8” two-axis floor-based model | 100/120R | 1-phase 100V·200W (per axis) |
1390W×730D×970H | Approx. 110kg |
| L-2210 | 200/240R | ||||
| L-2230 | 100/120/200/240K | ||||
| L-2250 | ※V(0～300min-1 or 0～600min-1) | 400W Inverter control (per axis) |
|||
| L-2300 | 8” three-axis floor-based model | 100/120R | 1-phase 100V·200W (per axis) |
2080W×730D×970H | Approx. 170kg |
| L-2310 | 200/240R | ||||
| L-2330 | 100/120/200/240K | ||||
| L-2350 | ※V(0～300min-1 or 0～600min-1) | 400W Inverter control (per axis) |
| ※ | Power supply: 1-phase 100/110V Water supply 1/2” Water drain 1” |
|---|---|
| ※ | Besides the 8” (205φ) models, 9” (225φ) models are also available. |
■Standard Accessories
| ・8” (205φ) aluminum disk with hole/with fluororesin(PTFE) coating (per axis) | 1 pc. |
|---|---|
| ・Water supply hose (12mmφ × 3m) with joint | 1 set |
| ・Water drain hose (32mmφ × 1m) with joint | 1 set |
■Optional Items
| ・8” (205φ)and 9” (225φ) aluminum disks without hole | |
|---|---|
| ・8” and 9” paper holder rings (for adhesive-free applications) | |
| ・8” and 9” buff fastening bands (for adhesive-free applications) | |
| ・8” and 9” splash-proof covers | |
| ・8” and 9” dust-proof covers |
